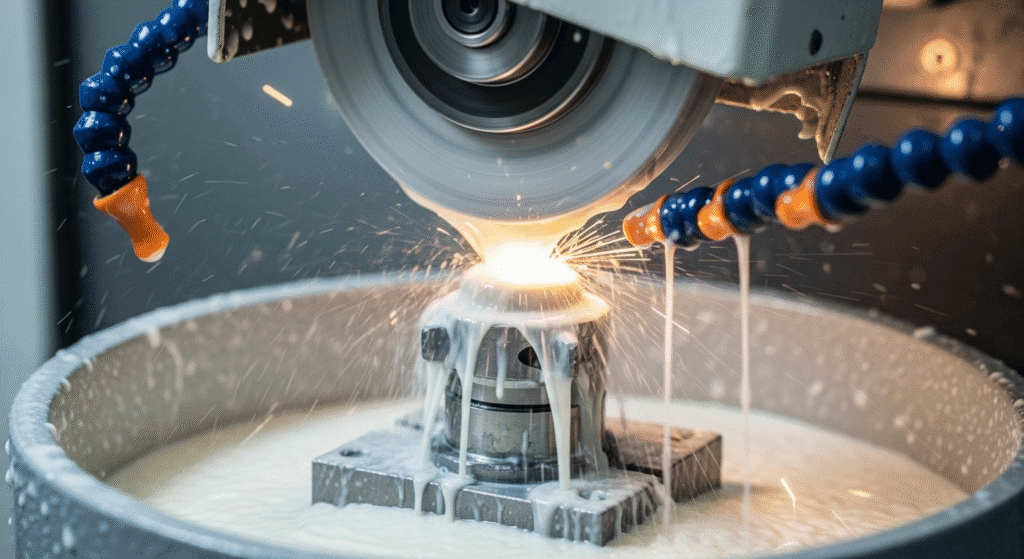

Grinding fluids are specialized liquids or oils used during metalworking to cool cutting tools, remove metal chips, and protect parts from rust. Think of them like the oil in your car engine – just as engine oil keeps metal parts from overheating and wearing out, grinding fluids protect both the grinding wheel and the workpiece during the intense friction of the grinding process.
Without these fluids, grinding operations would generate extreme heat that could damage both the tool and the material being worked on. The metal could warp, crack, or develop burn marks that ruin the finished product.
Functions of Grinding Fluids
Grinding fluids perform four critical functions that make precision metalworking possible:

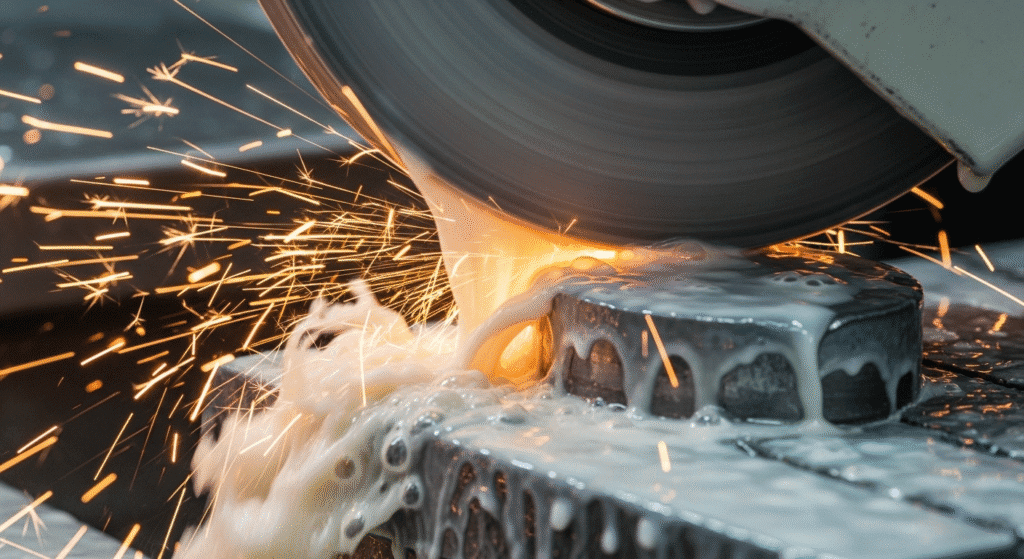

Cooling: The primary job is removing heat from the grinding zone. When metal meets grinding wheel at high speed, temperatures can exceed 1,000°F – hot enough to damage the metal’s structure and ruin precision parts.
Lubrication: The fluid creates a thin film between the wheel and workpiece, reducing friction. This means less power needed to grind, smoother surfaces, and longer-lasting grinding wheels.
Chip Evacuation: The fluid flushes away tiny metal particles (called swarf or chips) from the grinding area. Without this cleaning action, these particles would clog the grinding wheel and scratch the workpiece surface.
Corrosion Prevention: The fluid leaves a protective film on freshly ground metal surfaces, preventing rust from forming before the part moves to the next production step.
Types of Grinding Fluids
Straight Oils (Neat Oils)
Straight oils are pure petroleum or mineral oils used without mixing with water. They provide the best lubrication and rust protection, making them ideal for difficult grinding operations on tough materials like hardened steel.
These oils work best for precision grinding where surface finish matters more than cooling. You’ll find them in tool and cutter grinding shops where accuracy trumps speed.
The downside? Poor cooling compared to water-based fluids, and they can create fire hazards at high temperatures.
Soluble Oils (Emulsions)
Soluble oils mix petroleum oil with emulsifiers, creating a milky-white fluid when added to water (typically 3-10% oil to water). They balance good cooling from the water content with decent lubrication from the oil.
Most general-purpose grinding operations use soluble oils because they’re economical and versatile. They handle everything from surface grinding to cylindrical grinding reasonably well.
The main challenge is preventing bacteria growth in the water, which can cause bad odors and skin irritation for operators.
Semi-Synthetic Fluids (Semichemicals)
Semi-synthetics contain less petroleum oil (5-30%) than soluble oils but include synthetic lubricants and additives. When mixed with water, they create a translucent fluid that offers better cooling than soluble oils.
These fluids resist bacterial growth better than traditional emulsions and leave less residue on parts. They’re becoming the go-to choice for high-speed grinding operations where heat removal is critical.
Machine operators appreciate semi-synthetics because they can see the workpiece clearly through the fluid during grinding.
Synthetic Fluids (Chemical Fluids)
Synthetics contain no petroleum oil at all – just water, synthetic lubricants, and chemical additives. They provide the best cooling performance and longest fluid life of any grinding fluid type.
These clear fluids excel at high-speed, high-pressure grinding operations where maximum heat removal is essential. They’re also the cleanest option, leaving minimal residue on parts and machines.
The tradeoff is lower lubrication compared to oil-based fluids, which can limit their use on certain difficult-to-grind materials.
Common Grinding Fluid Additives
Extreme Pressure (EP) Agents: These chemicals (like sulfur or chlorine compounds) activate under high pressure and temperature, forming a protective layer that prevents welding between the wheel and workpiece.
Corrosion Inhibitors: Compounds that neutralize acids and create barrier films, protecting both the workpiece and machine components from rust.
Emulsifiers: Surfactants that help oil and water mix properly, maintaining stable emulsions in water-based fluids.
Biocides (Bactericides/Fungicides): Chemicals that prevent microorganism growth, extending fluid life and preventing the “Monday morning smell” familiar to many machinists.
Anti-Foaming Agents (Defoamers): Silicone or organic compounds that break down foam bubbles, ensuring proper fluid flow and cooling.
Polar Lubricants (Anti-Wear): Molecules that stick to metal surfaces, providing boundary lubrication even when the fluid film breaks down.
pH Buffers / Alkalinity Agents: Chemicals that maintain fluid pH between 8.5-9.5, preventing corrosion and supporting emulsion stability.
How to Choose Grinding Fluids
Selecting the right grinding fluid requires evaluating several factors:
Workpiece Material: Soft metals like aluminum need different fluids than hardened steel. Aluminum requires fluids with special additives to prevent staining, while titanium needs aggressive EP additives to handle its tendency to weld to grinding wheels.
Grinding Operation and Severity: Heavy stock removal needs maximum cooling (synthetics), while finish grinding requires better lubrication (straight oils). The grinding pressure, speed, and depth of cut all influence fluid selection.
Abrasive Material: Aluminum oxide wheels work well with most fluids, but super-abrasives like CBN or diamond often require synthetic fluids to prevent wheel loading.
Bond Type: Resin bonds may soften with certain oils, while vitrified bonds handle any fluid type.
Performance Requirements: Surface finish specifications, dimensional tolerances, and production rates all influence fluid choice. Tighter tolerances often mean using straight oils for their superior lubrication.
Machine and System Parameters: Consider tank capacity, filtration systems, and fluid delivery pressure. High-pressure systems work better with low-foam synthetics, while older machines might require the extra lubrication of soluble oils.
What Are Grinding Fluids Mainly Used For?
Grinding fluids find application across numerous industries and processes:
Automotive Manufacturing: Engine blocks, crankshafts, camshafts, and transmission gears all require precision grinding with appropriate fluids.
Aerospace Components: Turbine blades, landing gear parts, and structural components demand the highest quality grinding with carefully selected fluids.
Tool and Die Making: Cutting tools, molds, and dies need precise grinding with fluids that preserve sharp edges and exact dimensions.
Medical Device Production: Surgical instruments and implants require biocompatible fluids that won’t leave harmful residues.
Bearing Manufacturing: Ball and roller bearings need ultra-precise surfaces achievable only with the right fluid selection.
General Machine Shop Work: Everything from shaft grinding to surface finishing relies on properly chosen and maintained grinding fluids.
FAQs
How often should grinding fluid be changed?
Grinding fluid typically needs changing every 3-6 months, depending on usage and contamination levels. Monitor pH, concentration, and bacterial counts weekly to determine when replacement is necessary.
Can I mix different types of grinding fluids?
Never mix different fluid types without manufacturer approval. Mixing can cause chemical reactions that destroy the fluid’s effectiveness, create harmful compounds, or damage your equipment.
What’s the correct concentration for water-based grinding fluids?
Most water-based fluids run at 3-10% concentration, but always follow manufacturer specifications. Use a refractometer to check concentration daily and adjust as needed for optimal performance.
Why does my grinding fluid smell bad?
Bad odors usually indicate bacterial growth in water-based fluids. Add biocides, improve fluid circulation, and remove tramp oil to combat the problem before it affects performance.
Is grinding fluid dangerous to handle?
Most modern grinding fluids are relatively safe with proper handling. Always wear gloves, avoid prolonged skin contact, and ensure adequate ventilation to prevent respiratory irritation from mist.
Can grinding fluid cause rust on my machine?
Properly maintained fluid at correct concentration prevents rust. Problems arise when concentration drops too low, pH becomes acidic, or the fluid becomes contaminated with water.
