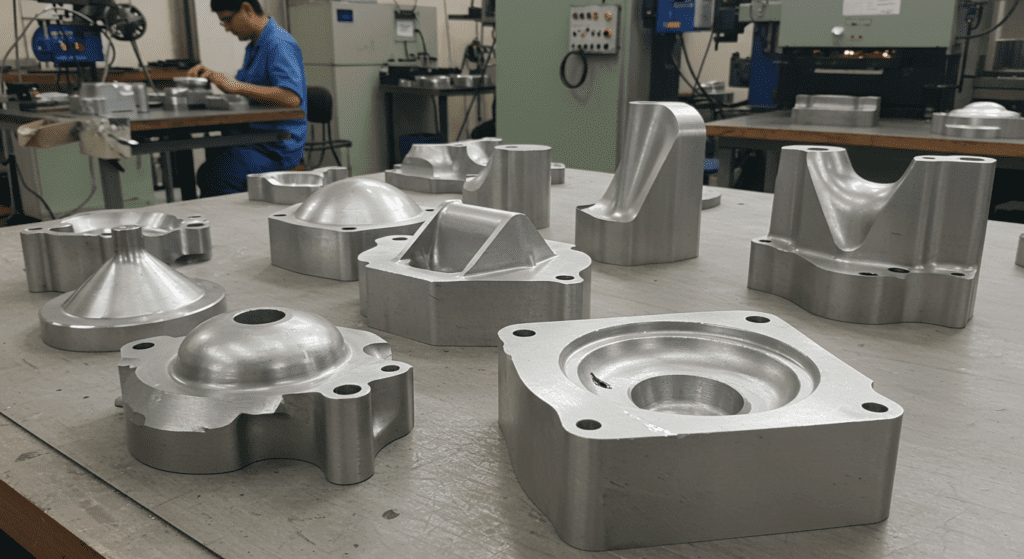

What is Aluminum Investment Casting

Aluminum investment casting is a precision manufacturing process that creates complex metal parts by pouring molten aluminum into ceramic molds made from wax patterns. The process gets its name from “investing” (covering) a wax model with ceramic material to create a highly detailed mold. Once the wax is melted out, you’re left with a hollow ceramic shell that perfectly captures every detail of your original pattern.

This method produces aluminum parts with exceptionally smooth surfaces and dimensional accuracies within ±0.003 inches per inch. You won’t see any parting lines or flash marks because the ceramic mold is one solid piece, not two halves pressed together.

The Aluminum Investment Casting Process

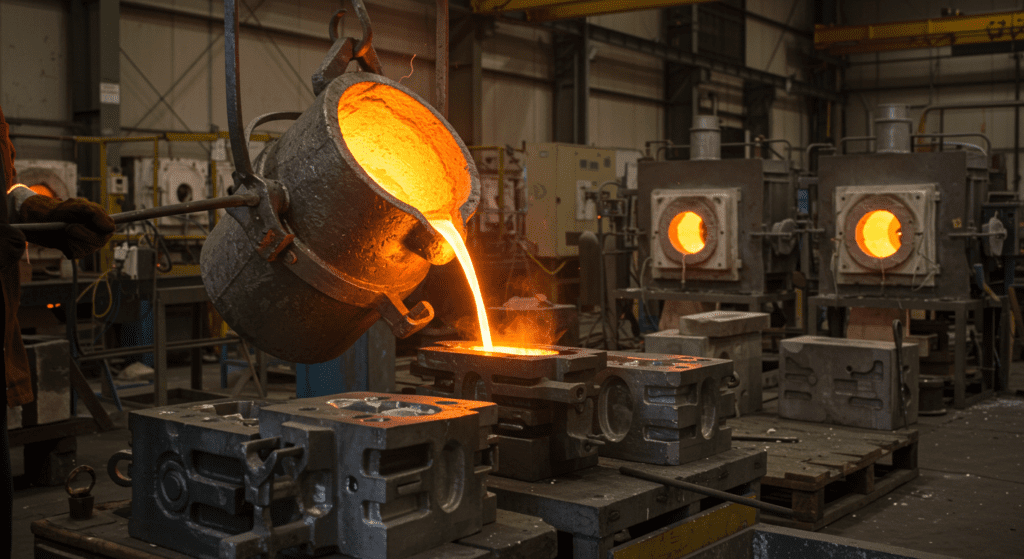

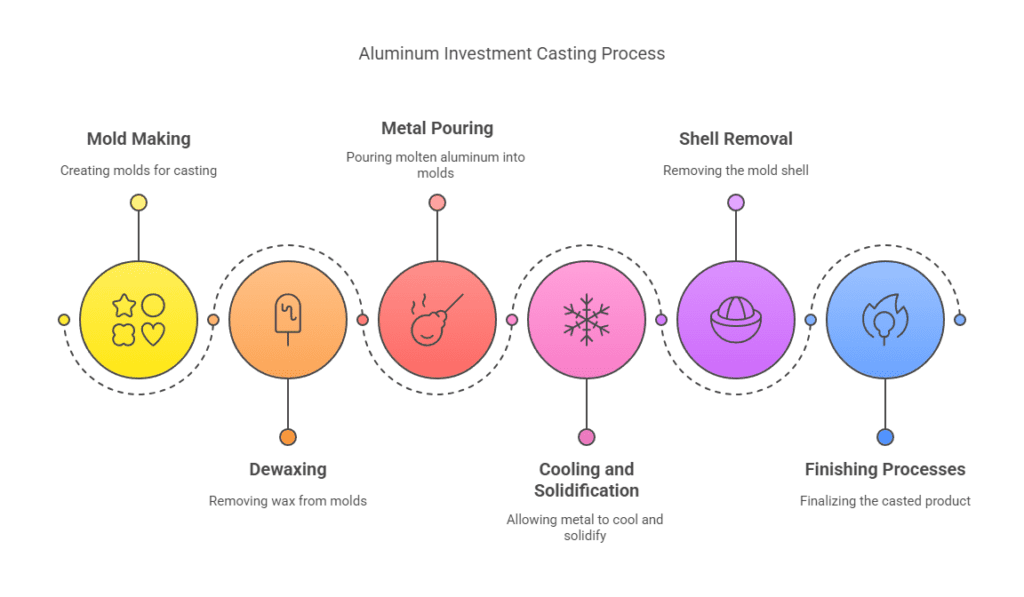

The investment casting process transforms a wax pattern into a precision aluminum part through seven critical steps:

1. Pattern Creation: A precise wax pattern is created by injecting wax into a metal die, 3D printing with castable materials, or hand carving. This pattern is slightly oversized to account for aluminum shrinkage during cooling.
2. Tree Assembly: Multiple wax patterns are attached to a central wax sprue to form a “tree” structure. This arrangement allows you to cast many parts in a single batch, improving efficiency.
3. Shell Coating: The wax assembly gets repeatedly dipped in ceramic slurry and coated with fine sand particles. Each layer must dry before the next application, building up a strong ceramic shell typically 5-8 layers thick.
4. Wax Removal: The ceramic-coated assembly is heated in an autoclave or oven at 200-375°F. The wax melts and drains out completely, leaving a hollow ceramic mold that captures every detail of the original pattern.
5. Shell Firing: The empty ceramic mold is fired at temperatures reaching 1,800-2,000°F. This step burns out any remaining wax residue and strengthens the ceramic shell to withstand molten aluminum.
6. Metal Pouring: Molten aluminum at approximately 1,300°F is poured into the preheated ceramic mold. The hot mold ensures proper metal flow into thin sections and prevents thermal shock that could crack the ceramic.
7. Finishing: After cooling, the ceramic shell is broken away to reveal the aluminum casting. Parts are cut from the sprue, gates are ground smooth, and any required machining or surface treatments are applied.

Advantages of Aluminum Investment Casting

• Complex geometries without assembly: Investment casting produces intricate shapes in one piece that would require multiple parts and welding with other methods. You can cast thin walls down to 0.060 inches, internal cooling channels, and undercuts that are impossible with two-part molds.
• Superior surface finish: Parts emerge from the mold with a 125 micro-inch surface finish or better, often eliminating the need for secondary machining. The smooth, as-cast surface reduces finishing costs by 50-75% compared to sand casting.
• Exceptional dimensional accuracy: Tolerances of ±0.003 inches per inch are standard, with some foundries achieving ±0.002 inches on critical dimensions. This precision means logos, part numbers, and fine serrations can be cast directly into the part.
• Near-net shape manufacturing: Investment castings typically require 90% less machining than other casting methods. This reduction in material removal saves time, reduces waste, and lowers overall production costs.
• Lightweight yet strong components: Aluminum’s density is just one-third that of steel, making investment cast parts ideal for aerospace and automotive applications. The process preserves aluminum’s excellent strength-to-weight ratio while adding design flexibility.
• Natural corrosion resistance: Aluminum forms a protective oxide layer that prevents rust without additional coatings. This built-in protection makes investment cast parts suitable for marine environments and outdoor applications.

Disadvantages of Aluminum Investment Casting

• Size and weight limitations: Parts over 75 pounds become impractical due to ceramic shell strength limits and handling difficulties. Larger components require sand casting or other methods that can accommodate greater mass.
• Long lead times: Standard delivery is 8-12 weeks from order to parts. Each new design requires pattern tooling and process validation that extends initial production time.
• Single-use molds increase waste: Every casting destroys its ceramic shell mold, generating 2-3 pounds of ceramic waste per pound of aluminum cast. While wax can be recycled, the ceramic disposal adds to production costs.
• Design constraints remain: Minimum wall thickness is typically 1.5-2mm, and very deep holes or extreme length-to-diameter ratios may not fill properly. Cores for internal features must be strong enough to survive the casting process.
• Complex multi-step process: Investment casting involves pattern making, shell building, melting, pouring, and finishing across multiple departments. Each step requires specialized skills and equipment, increasing opportunities for defects.

Types of Aluminum Used in Investment Casting

• A356 Aluminum: The most popular investment casting alloy, offering excellent fluidity for complex shapes and good mechanical properties. This silicon-magnesium alloy provides tensile strength of 34,000 psi and 3-5% elongation after T6 heat treatment.
• A357 Aluminum: Premium version of A356 with tighter chemistry controls and lower iron content for aerospace applications. Delivers 45,000 psi tensile strength with better fatigue resistance for critical components.
• 319 Aluminum: General-purpose alloy containing silicon and copper, providing good castability and moderate strength at 31,000 psi. Commonly used for automotive components like intake manifolds and pump housings.
• 713 Aluminum: Zinc-copper alloy specifically developed for investment casting with superior fluidity for thin sections. Achieves 35,000 psi tensile strength without heat treatment, saving processing time.
• 242 Aluminum: High-temperature alloy maintaining strength up to 400°F for engine and exhaust system components. Contains copper and nickel for enhanced elevated temperature properties.
• 535 Aluminum (Almag 35): Magnesium-based alloy offering exceptional corrosion resistance for marine applications. Provides bright, anodizable surface finish for decorative parts.

Types of Heat Treatments Used in Investment Casting

• T6 Heat Treatment: Solution heat treatment at 1000°F followed by water quench and artificial aging at 310°F for 8 hours. This process doubles the as-cast strength and is standard for A356 and A357 alloys.
• T5 Heat Treatment: Artificial aging only, without solution treatment, applied to castings cooled from elevated temperature. Provides moderate strength improvement with minimal distortion for dimensionally critical parts.
• T4 Heat Treatment: Solution treatment and natural aging at room temperature for improved ductility and formability. Used when parts require subsequent forming or when maximum elongation is needed.
• T7 Heat Treatment: Over-aging treatment that trades some strength for improved dimensional stability and stress corrosion resistance. Common for aerospace components operating in corrosive environments.
• Annealing (O Temper): Full annealing at 775°F to achieve maximum ductility for severe forming operations. Reduces strength to minimum levels but allows extensive deformation without cracking.
• Stress Relief: Low-temperature treatment at 400-450°F to reduce residual stresses without changing mechanical properties. Applied after machining to prevent distortion in precision components.

Common Applications and Examples

• Aerospace components: Turbine blades, impellers, and housing assemblies where every ounce matters. Investment casting produces aircraft parts with wall thicknesses of 0.040 inches that would be impossible to machine.
• Medical devices: Surgical instrument handles, orthopedic implant trials, and diagnostic equipment components. The smooth surface finish meets strict hygiene requirements without additional polishing.
• Firearm parts: Trigger assemblies, hammer components, and receiver housings requiring precise tolerances. Investment casting captures fine checkering and engraving details directly in the metal.
• Automotive performance parts: Turbocharger impellers, custom intake manifolds, and lightweight suspension components. Racing teams use investment casting for one-off designs without expensive tooling.
• Electronic heat sinks: Complex fin geometries and pin arrays that maximize surface area for cooling. Investment casting creates thermal management solutions with internal channels impossible to machine.
• Industrial valve bodies: Pump housings and flow control components with smooth internal passages. The as-cast surface finish of 125 RMS or better ensures optimal fluid flow without machining.
• Marine hardware: Cleats, winch components, and deck fittings that resist saltwater corrosion. Aluminum’s natural oxide layer plus the smooth cast surface provides decades of service life.

Comparison with Other Casting Methods

FAQs

What size parts can be made with aluminum investment casting?

Aluminum investment castings typically range from a few ounces up to 75 pounds. Parts smaller than a coin or larger than a car wheel are possible, though most production falls between 1-20 pounds.

How long does the investment casting process take?

The complete process from wax pattern to finished part takes 5-7 days for standard orders. Initial tooling and first article approval adds 4-8 weeks to new projects.

Can investment casting produce internal features?

Yes, investment casting can create internal passages, cooling channels, and hollow sections using ceramic cores. These cores are positioned in the wax pattern and remain after the wax is melted out.

What surface finishes are possible directly from investment casting?

As-cast surface finish ranges from 60-125 RMS without any secondary operations. Additional finishing like shot blasting, vibratory deburring, or chemical brightening can achieve 30 RMS or better.
