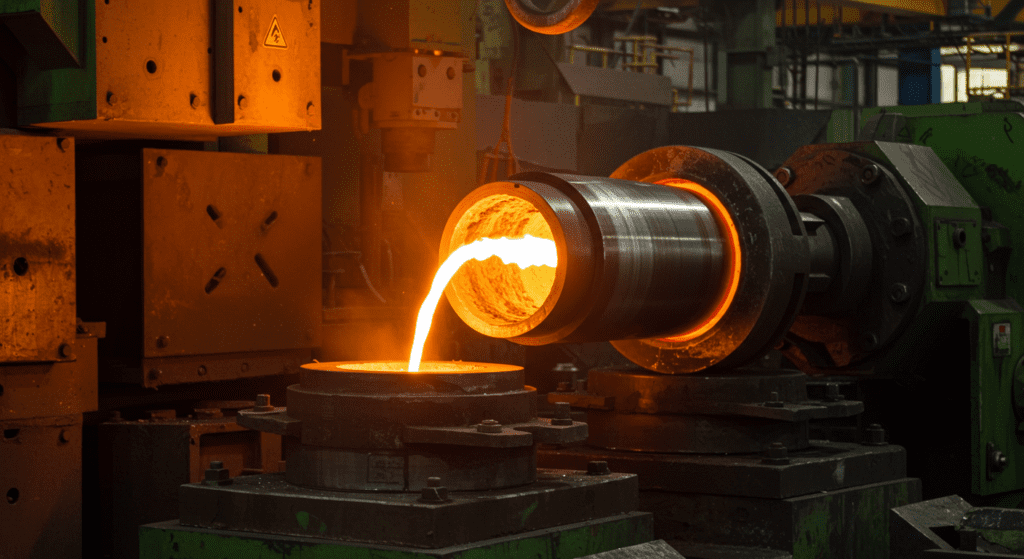

Centrifugal casting is a metal casting process that uses rotational force to produce cylindrical parts. The process involves pouring molten metal into a spinning mold where centrifugal force pushes the metal against the mold walls. This creates parts with dense, uniform structures and minimal defects.
The technique produces hollow cylindrical components like pipes, tubes, and rings. Industries rely on centrifugal casting for parts that need high strength and durability. The process works with various metals and delivers consistent results for both small and large production runs.
How Does Centrifugal Casting Work
Centrifugal casting works by spinning a mold at high speeds while pouring molten metal into it. The rotation creates centrifugal force that drives the metal outward against the mold walls. This force is typically 50 to 100 times stronger than gravity.
The spinning action separates impurities and gases from the metal. Lighter materials move toward the center while denser, purer metal forms the outer wall. This natural separation creates parts with excellent mechanical properties and fewer defects than traditional casting methods.

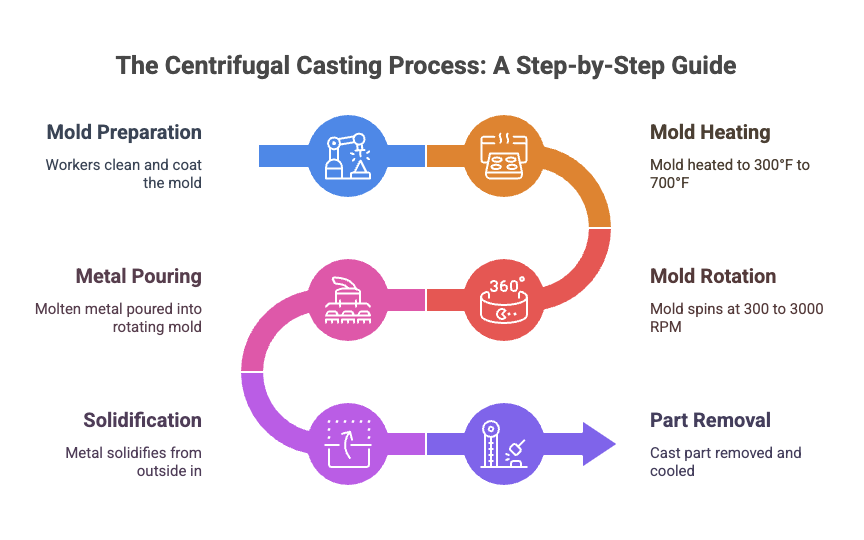

Centrifugal Casting Process
Step 1: Mold Preparation
The first step involves preparing the mold for casting. Workers clean the mold thoroughly and apply a refractory coating to the inner surface.
Step 2: Mold Heating
Next, the mold is heated to the appropriate temperature. The temperature typically ranges from 300°F to 700°F.
Step 3: Mold Rotation
The mold begins spinning at 300 to 3000 RPM speed before the metal is poured. The mold continues rotating throughout the entire casting process.
Step 4: Metal Pouring
Molten metal is poured into the rotating mold through a pouring basin or trough. The centrifugal force immediately distributes the metal evenly along the mold walls.
Step 5: Solidification
The metal solidifies from the outside in as the mold continues spinning. This directional solidification pushes impurities toward the inner bore where they can be easily removed.
Step 6: Part Removal
Once fully solidified, the rotation stops and the part cools to handling temperature. Workers then remove the cast part from the mold. The inner surface often requires machining to achieve final dimensions.
What Are the Different Types of Centrifugal Casting
True Centrifugal Casting
True centrifugal casting produces hollow cylindrical parts without using cores. The process relies entirely on centrifugal force to shape the inner diameter of the part. This method creates parts with uniform wall thickness and excellent density.
Common products include pipes, tubes, cylinder liners, and bearing rings. The process works best for parts with length-to-diameter ratios between 0.5 and 15.
Semi-Centrifugal Casting
Semi-centrifugal casting uses centrifugal force to fill mold cavities positioned around a central axis. Unlike true centrifugal casting, this method can produce solid parts or parts with varying wall thicknesses. A central core is often used to create specific internal geometries.
This technique is ideal for making wheels, pulleys, gears, and other symmetrical parts. The centrifugal force helps achieve better metal distribution than static casting methods.
Centrifuging
Centrifuging arranges multiple mold cavities around a central sprue. As the entire assembly rotates, molten metal flows from the central reservoir into each cavity. This method combines the benefits of centrifugal force with the ability to cast multiple small parts simultaneously.
Manufacturers use centrifuging for producing small precision parts like jewelry, dental implants, and aerospace components. The process ensures consistent quality across all cavities.
Horizontal Vs. Vertical Machine Orientations
Horizontal Centrifugal Casting
Horizontal centrifugal casting machines rotate the mold around a horizontal axis. This orientation works best for long cylindrical parts where the length exceeds the diameter. The horizontal setup allows for easy pouring and consistent wall thickness along the entire length.
Horizontal machines typically produce pipes up to 50 feet long and 6 feet in diameter. The design makes it simple to extract long parts after casting.
Vertical Centrifugal Casting
Vertical centrifugal casting machines spin the mold around a vertical axis. This configuration suits shorter parts where the diameter is larger than the height. Vertical machines offer better control over wall thickness variation and produce parts with superior concentricity.
Common applications include casting rings, flanges, and short cylinders. Vertical orientation also allows for easier integration of cores and inserts.
Materials for Centrifugal Casting
Ferrous Metals
- Irons: Cast iron, ductile iron, and gray iron work exceptionally well in centrifugal casting. These materials achieve densities up to 99.5% of theoretical maximum. Common applications include cylinder liners, brake drums, and hydraulic cylinders.
- Steels: Carbon steels, alloy steels, and stainless steels can all be centrifugally cast. The process produces steel parts with mechanical properties 25-30% better than static castings. Typical products include tubes for petrochemical plants and rolls for steel mills.
Non-ferrous Metals
- Copper-Based Alloys: Bronze and brass alloys are frequently centrifugally cast. These materials offer excellent corrosion resistance and thermal conductivity. Marine propeller sleeves and electrical bushings represent common applications.
- Nickel-Based Alloys: Superalloys containing nickel resist extreme temperatures and corrosive environments. Centrifugal casting produces nickel alloy parts for chemical processing equipment and gas turbines.
- Aluminum Alloys: While challenging due to their low density, aluminum alloys can be successfully centrifugally cast. The process requires higher rotational speeds but produces parts with minimal porosity.
- Cobalt-Based Alloys: These alloys maintain strength at high temperatures and resist wear. Centrifugal casting creates cobalt alloy components for aerospace engines and medical implants.
What Are the Advantages of Centrifugal Casting
- Superior mechanical properties: Parts have 30% higher tensile strength compared to static casting methods due to the fine grain structure and directional solidification.
- Minimal defects: Centrifugal force eliminates gas porosity and shrinkage cavities by maintaining pressure during solidification.
- No cores required: True centrifugal casting produces hollow parts without cores, reducing costs and complexity.
- Excellent metallurgical structure: The process creates uniformly dense parts with consistent properties throughout the wall thickness.
- Cost-effective for cylindrical parts: Production costs are 20-40% lower than other methods for pipes, tubes, and rings.
- Wide size range: Parts from 2 inches to 10 feet in diameter and up to 50 feet long can be produced.
- Material savings: Near-net-shape casting reduces machining requirements and material waste by up to 50%.
- Impurity separation: Centrifugal force naturally segregates inclusions and impurities toward the inner bore where they’re removed.
What Are the Limitations of Centrifugal Casting
- Shape restrictions: The process only produces cylindrical or symmetrical parts, limiting design flexibility.
- Size limitations for small parts: Parts smaller than 2 inches in diameter are difficult to cast effectively.
- Equipment costs: Initial investment for centrifugal casting machines ranges from $100,000 to $2 million.
- Skilled operators required: The process demands experienced technicians to set parameters and troubleshoot issues.
- Limited alloy options: Some alloys with poor fluidity or specific solidification characteristics don’t cast well.
- Secondary operations needed: Inner surfaces often require machining to achieve final dimensions and finish.
- Production volume requirements: The process becomes economical only for runs of 50 pieces or more.
- Safety concerns: Spinning molds with molten metal create hazards requiring strict safety protocols and equipment.
What Are the Applications of Centrifugal Casting
- Pipe and tube manufacturing: Water mains, sewer pipes, and oil country tubular goods rely on centrifugal casting for corrosion resistance and strength.
- Industrial rolls: Paper mills, steel plants, and printing operations use centrifugally cast rolls that withstand high loads and wear.
- Cylinder liners: Engine manufacturers produce cylinder sleeves with superior wear resistance and heat dissipation properties.
- Bearing housings: Large bearings for turbines, crushers, and heavy machinery benefit from the process’s uniform structure.
- Chemical processing equipment: Corrosion-resistant tubes and vessels handle aggressive chemicals in refineries and plants.
- Power generation components: Steam turbine casings, boiler tubes, and heat exchanger parts require the high integrity this process provides.
- Mining and mineral processing: Crusher components, slurry pipes, and wear plates resist abrasion in harsh environments.
- Marine applications: Propeller shaft sleeves, stern tubes, and seawater system components resist corrosion and erosion.
- Aerospace parts: Jet engine rings, combustion chambers, and structural tubes meet strict quality requirements through centrifugal casting.
